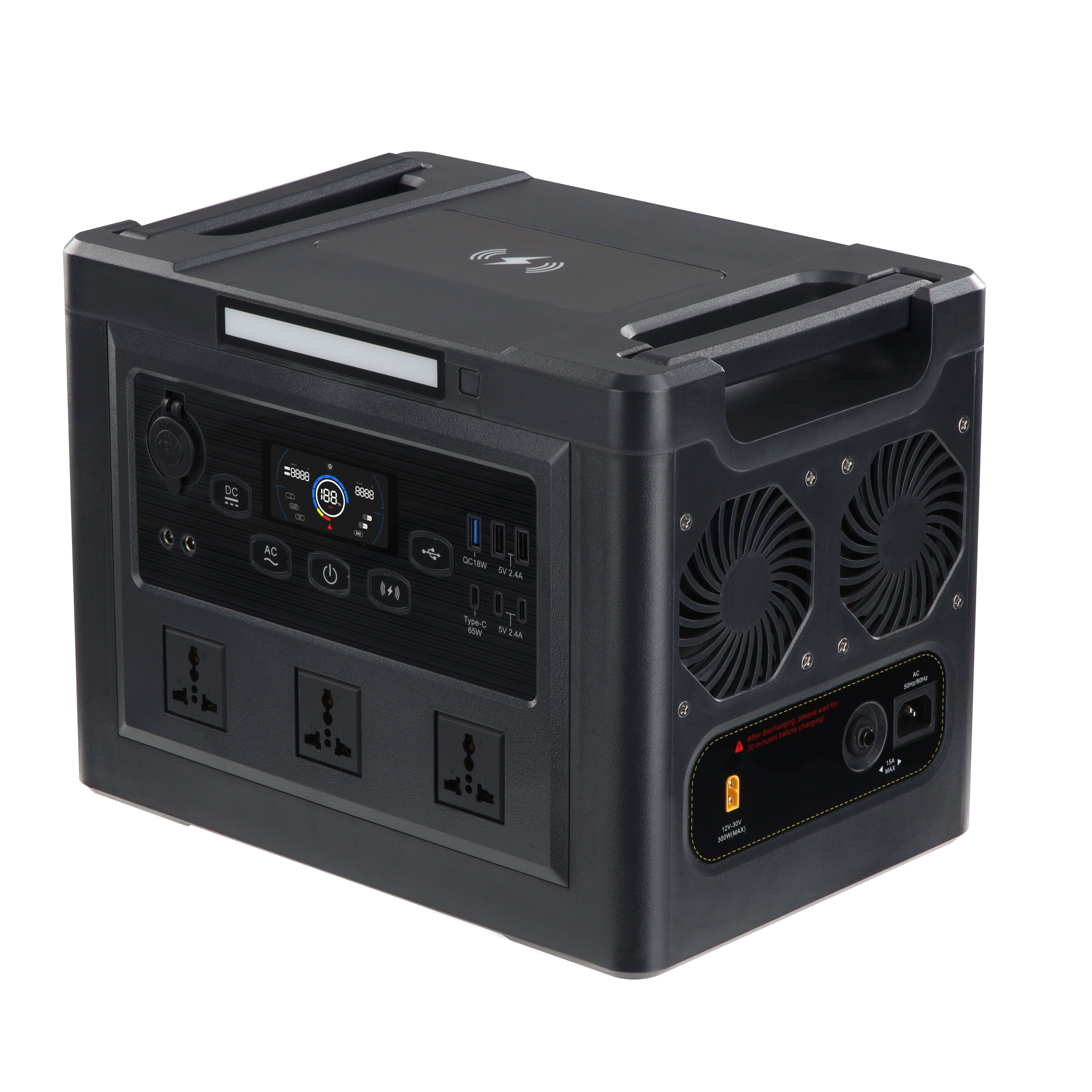

1.2kW Portable Power Supply Hybrid Optional for PV Solar and AC Mains

Short Description:

JZH portable power supply is a portable energy storage power supply that integrates multiple functions. With the built-in high-performance A-grade lithium iron phosphate batteries, high-quality BMS Battery management system, and high-efficiency inverter conversion circuit.  It is widely used in home, office, outdoor camping and emergency backup power supply.  It is Available to be charged by AC Mains or PV Solar Power.

The

JZH portable power supply is Certified with UN38.3, MSDS, CE, FCC, Rohs, NOM, ETL, UL , TUV...



1)Small, Light Weight, Convenient

2)Pure Sine Wave Output,

3)Top Quality Lithium Battery Cells

4)Support Qc3.0 Fast Charging, Support Pd18-65W Fast Charging, 15W Wireless Charging

5)Colourful Lcd Display, Visualization Of Operating Data

6)Ac Output : 100V~240V Ac (50Hz~60Hz).

7)Dc Output :  5V/12V Dc. Usb, Type C, Mobile Wireless Charging.

● MPPT (Max Power Point Tracking)
● Support QC 3.0 Fast Charging, Support Pd 18-65W Fast Charging, 15W Wireless Charging
● 5)Colourful LCD Display, Visualization Of Operating Data
● AC Output : 100V~240V Ac (50Hz~60Hz).
● DC Output :  5V/12V Dc. Usb, Type C, Mobile Wireless Charging.

Specifications

Specification

Rated Capacity

1008WH

Rated power

1200W

Charge and discharge parameters

Operating temperature

0℃~40℃ (Charge  )-10℃~40℃ (Discharge)

Support charging type

Grid charging/Solar charging

Input voltage range

Grid input 100V /solar input 20~40V

Input voltage

Grid input 100V/ Solar input 20~40V

Charging voltage

16.8V

AC Max charging current

100V/10A

Max charging power

550W

Output type

AC

USB

Type-C

DC

Wireless charging

Output rated power

1200W

QC3.018W

65W   MAX

100W

15W

Frequency

50Hz/60 Hz±1HZ(Auto)

Output voltage/current

110~230V/10A

5V/2.4A,5V/3A

5~20V/3.25A

12.5V 8A

12V/1.25A

Features

Cooling method

Cooling fan

Running noise

≤5dB

Protection

IP53

Working humidity

65±20%RH

Storage humidity

65±20%RH

Product Information

Product Size

370*245*275mm

Package Size

455*325*368mm

Net weight

13kg

Gross weight

15kg

Packing

Carton
