FEATURES

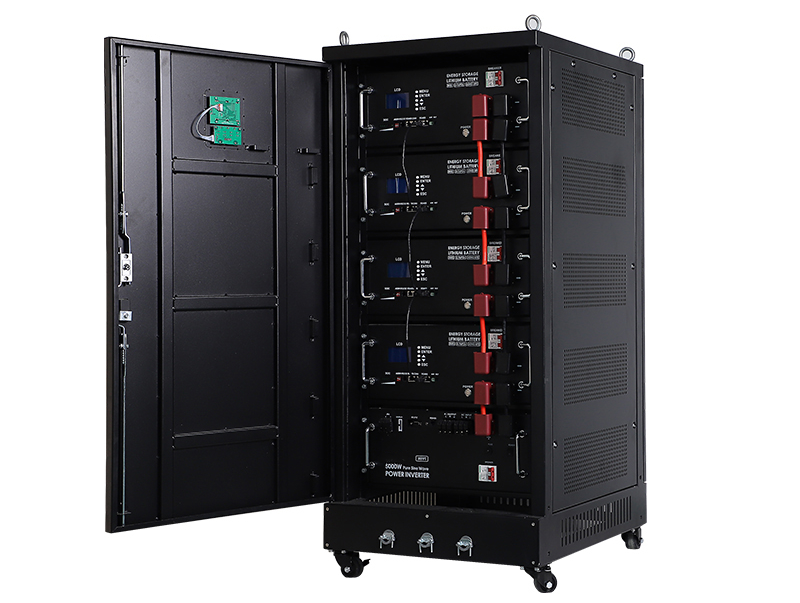

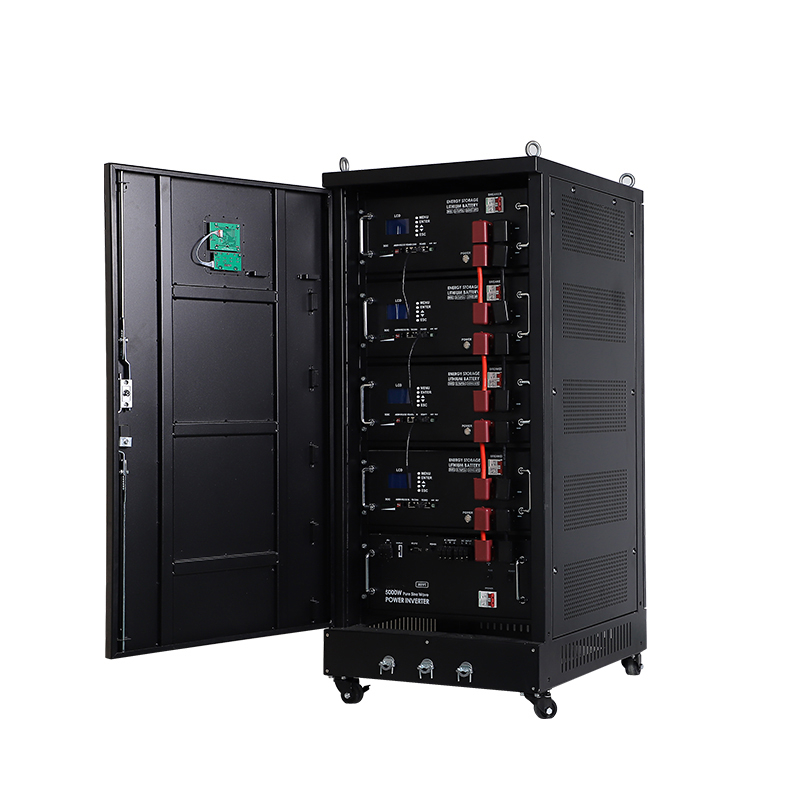

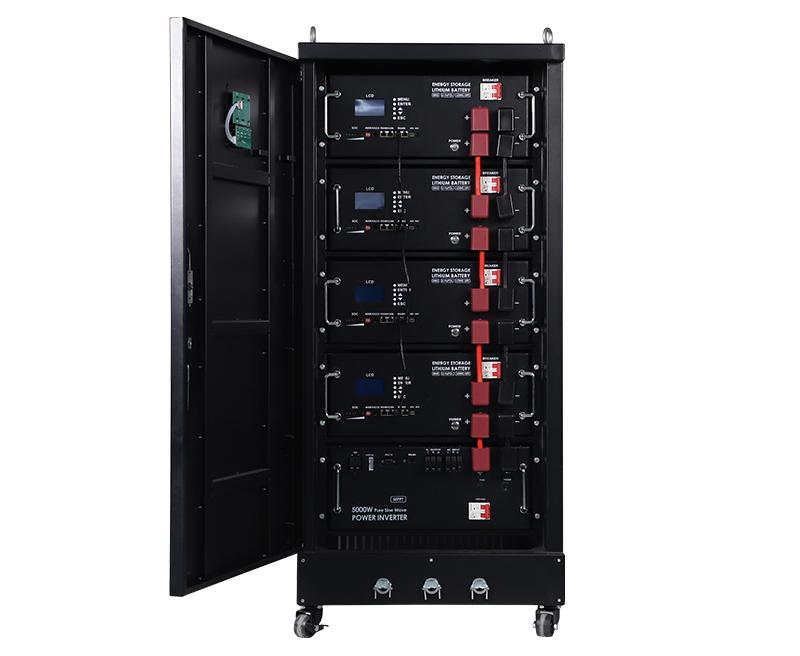

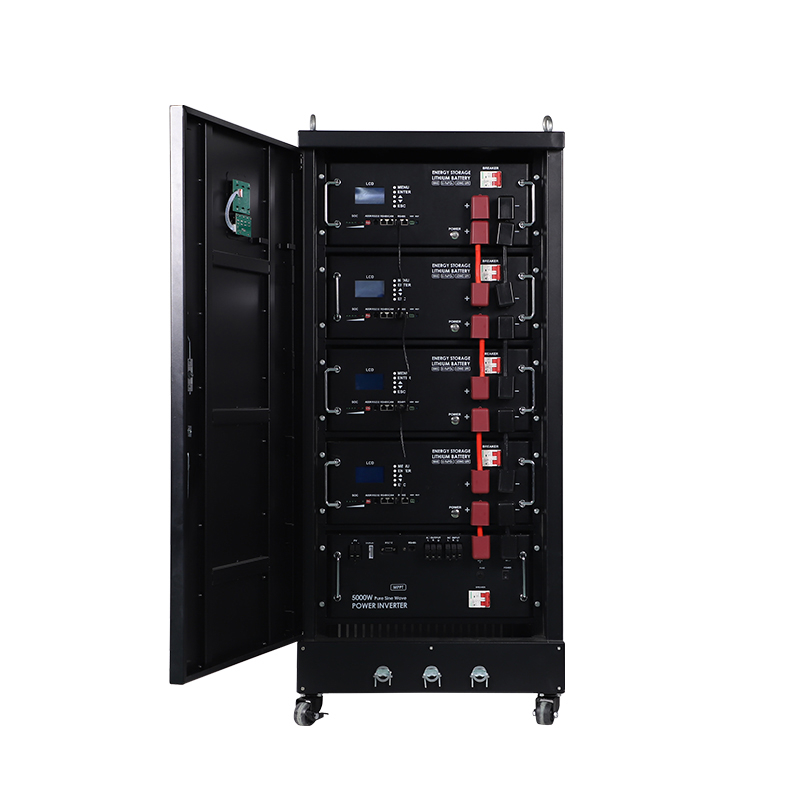

The ESS Kit ( Energy Storage System) is a High Performance Off-Grid Home Energy Storage System, Specially developed and manufactured by JZH, Which is the most reliable and high efficiency Solution for Home Energy Storage.
JZH ESS Energy Storage System wins in many of the Advantages such as : High Quality Lithium Lifepo4 Battery, Intelligent BMS Battery Management System, High Frequency off-Grid Photovoltaic Inverter, Built-in Mppt Controller. Long Life of more than 6000 Circles, High Safety Performance. JZH ESS Energy Storage System is also an Efficient and Reliable Energy Solutions for Photovoltaic Off-Grid Power Generation Systems, Energy Storage Systems, Household Photovoltaic Storage Systems, And Industrial & Commercial Energy Storage Systems .
ADVANTAGES & BENEFITS
Solar Energy Storage Inverter
1)Hybrid Energy Inverter On / Off Grid with Pure Sine Wave.
2)Communication Optional : Usb / Rs232 / Rs485 / Wifi / 4G / Bluetooth.
3)RMS (Remote Monitoring System) Available To Operate Via Phone App.
4)Overload / Over Temperature / Short Circuit Protection.
5)Intelligent LCD Display Screen Setting (Working Mode / Charge Current / Charge Voltage...).
Solar Energy Storage Lithium Battery LiFePO4
1)More Than 6000 Life Circles.
2)Customized Voltage and Capacity.
3)Communication Optional : USB / RS232 / RS485 / Wifi / 4G / Bluetooth.
4)Intelligent BMS Battery Management Programme to Keep the LiFePO4 Energy Storage Batteries in safe and high performance.
5)Full Protection : Overload / Short Circuit / Deep Discharge Protection / Over Temperature...
Top Quality ESS - Solar Energy Storage System
1)Low Voltage Protection.
2)Overload Protection.
3)Over Temperature Protection.
4)Balanced Protection.
5)Over Discharge Protection.
6)Short Circuit Protection.
7)Deep Discharge Protection.
Specifications
|
Mode |
HOME ESS 10KWH |
HOME ESS 15KWH |
HOME ESS 20KWH |
HOME ESS30KWH |
|
Capacity |
10.24KWh / 5KW |
15.36KWh / 8KW |
20.48KWh / 10KW |
30.72KWh / 15KW |
|
Standard discharge current |
50A |
50A |
50A |
50A |
|
Max.discharge current |
200A |
100A |
100A |
100A |
|
Working voltage range |
43.2-57.6VDC |
43.2-57.6VDC |
43.2-57.6VDC |
43.2-57.6VDC |
|
Standard Voltage |
51.2VDC |
51.2VDC |
51.2VDC |
51.2VDC |
|
Max.charging current |
50A |
50A |
50A |
50A |
|
Max.charging voltage |
57.6V |
57.6V |
57.6V |
57.6V |
|
Rated PV input voltage |
360VDC |
360VDC |
360VDC |
360VDC |
|
MPPT tracking voltage range |
60 - 430Vdc |
60 - 430Vdc |
60 - 430Vdc |
60 - 430Vdc |
|
Max input voltage (VOC) |
260V - 300V |
260V - 300V |
260V - 300V |
260V - 300V |
|
Max input power |
6KW |
9KW |
12KW |
17.6KW |
|
DC input voltage range |
60 - 430Vdc |
60 - 430Vdc |
60 - 430Vdc |
60 - 430Vdc |
|
Rated AC power input voltage |
220VAC / 230VAC / 240VAC |
|||
|
AC Grid input voltage range |
170 VAC ~ 280 VAC ( UPS mode ) / 120 VAC ~ 280 VAC ( Inverter mode ) |
|||
|
Grid input frequency range |
45Hz ~ 55Hz (50Hz) ; 55Hz ~ 65Hz ( 60Hz ) |
|||
|
Inverter output efficiency |
94% ( MAX ) |
|||
|
Inverter output voltage |
220VAC±2% / 230VAC±2% / 240VAC+2% ( Inverter mode ) |
|||
|
Inverter output frequency |
50Hz ± 0.5 or 60Hz ± 0.5 ( Inverter mode ) |
|||
|
Inverter output wave form |
Pure Sine Wave |
|||
|
Grid output efficiency |
>99% |
|||
|
Max mains charging current |
60A |
|||
|
Max PV charging current |
100A |
|||
|
Max charging current (Grid+PV) |
100A |
|||
|
Max Discharging current |
100A |
|||
|
Optional mode |
Grid priority/PV priority/Battery priority |
|||
|
Communication |
Optional:RS485/RS232/CAN WFi/4G/Bluetooth |
|||
|
*Voltage,capacity,size/color customization,OEM/ODM services can be provided according to customer needs |
||||
