FEATURES

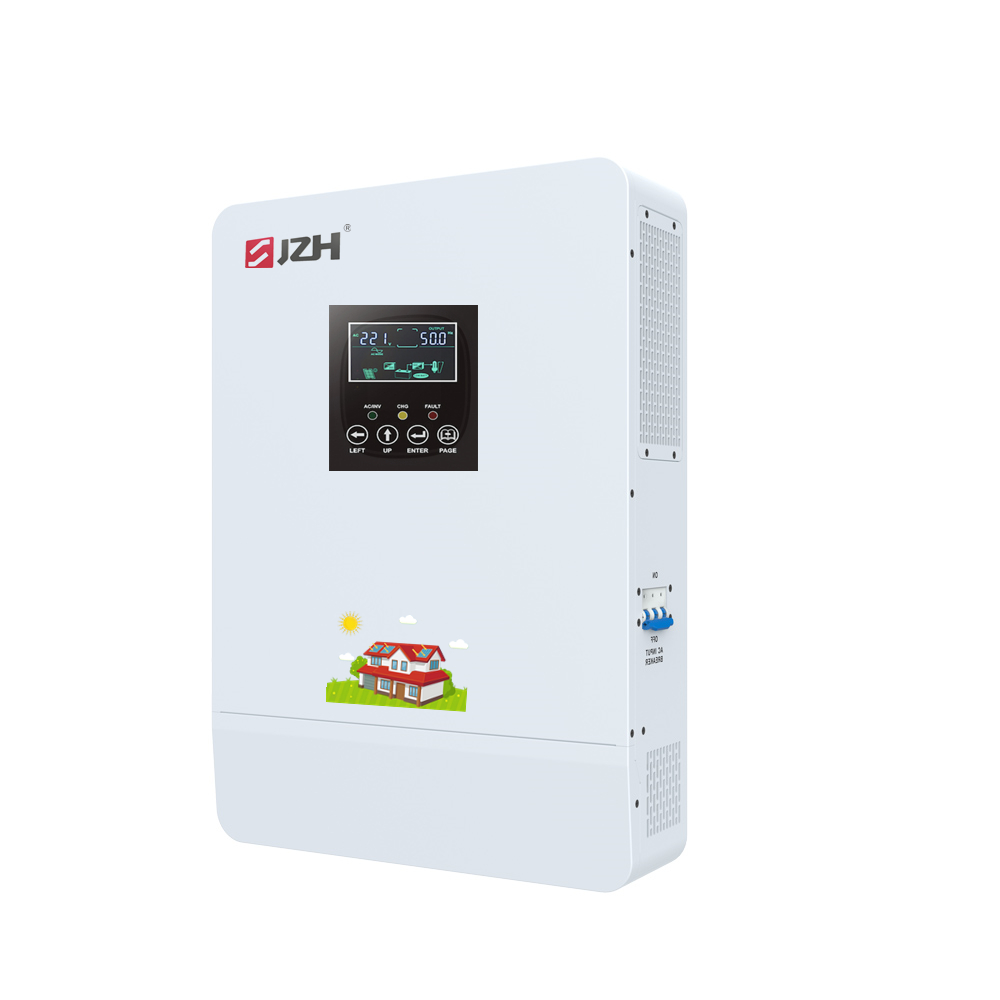

The ESS Kit ( Energy Storage System) is a High Performance Off-Grid Home Energy Storage System, Specially developed and manufactured by JZH, Which is the most reliable and high efficiency Solution for Home Energy Storage.
JZH ESS Energy Storage System wins in many of the Advantages such as : High Quality Lithium Lifepo4 Battery, Intelligent BMS Battery Management System, High Frequency off-Grid Photovoltaic Inverter, Built-in Mppt Controller. Long Life of more than 6000 Circles, High Safety Performance. JZH ESS Energy Storage System is also an Efficient and Reliable Energy Solutions for Photovoltaic Off-Grid Power Generation Systems, Energy Storage Systems, Household Photovoltaic Storage Systems, And Industrial & Commercial Energy Storage Systems .
ADVANTAGES & BENEFITS
-
1)Hybrid Energy Inverter On / Off Grid with Pure Sine Wave.
2)Communication Optional : USB / Rs232 / Rs485 / Wifi / 4G / Bluetooth.
3)RMS (Remote Monitoring System) Available To Operate Via Phone App.
4)Overload / Over Temperature / Short Circuit Protection.
5)Intelligent LCD Display Screen Setting (Working Mode / Charge Current / Charge Voltage...).
Full Protection
1)Low Voltage Protection.
2)Overload Protection.
3)Over Temperature Protection.
4)Balanced Protection.
5)Over Discharge Protection.
6)Short Circuit Protection.
7)Deep Discharge Protection.
Specifications
|
SPECIFICATION |
|||
|
Model |
JZHPT8K |
JZHPT10K |
JZHPT12K |
|
Rated output power |
8kW |
10kW |
12kW |
|
Maximum peak power |
16kW |
20kW |
24kW |
|
Rated output voltage |
400Vac (3L+N) |
||
|
Load motor capacity |
5HP |
6HP |
6HP |
|
Rated frequency |
50 / 60Hz |
||
|
Output waveform |
Pure Sine Wave |
||
|
Switching Time |
10ms (Typical) |
||
|
Battery Type |
Lithium-ion battery pack / Lead-acid battery / Customized |
||
|
Rated battery voltage |
48VDC |
||
|
Voltage range |
48VDC ~ 60VDC ± 0.6VDC (Under voltage alarm / shut down voltage / over voltage alarm / over voltage recovery. |
||
|
Max.Solar charging current |
180A |
220A |
260A |
|
Max.mains charging current |
100A |
120A |
120A |
|
Max hybrid charging current |
180A |
220A |
260A |
|
PV SOLAR |
|||
|
Number of MPPT |
2 Path |
||
|
Max.input power |
6000W+6000W |
7500W+7500W |
9000W+9000W |
|
Max.input current |
22A + 22A |
||
|
Max.Open Circuit Voltage |
800VDC + 800VDC |
||
|
MPPT Voltage Range |
200 ~ 600VDC |
||
|
AC MAINS / GENERATOR |
|||
|
Input voltage range |
Phase Voltage 170~280V Line Voltage 305~485V |
||
|
Input frequency range |
50/60Hz |
||
|
Bypass overload current |
63A |
||
|
INVERTER EFFICIENCY |
|||
|
MPPT tracking Efficiency |
99.9% |
||
|
Inverter Max. Efficiency |
≥ 92% |
||
|
COMMUNICATION |
|||
|
Built-in interface |
RS485 / CAN / USB / Dry Contact |
||
|
External module(optional) |
Wi-Fi / GPRS |
||
|
BASIC PARAMETERS |
|||
|
Product size |
620*445*130mm |
||
|
Product weight |
27kg |
||
|
Protection level |
IP20 Only supports indoor installation |
||
|
Ambient temperature |
-10~55℃,>45℃ Derate |
||
|
Noise |
<60dB |
||
|
Cooling method |
Air cooling |
||
.png)
