FEATURES

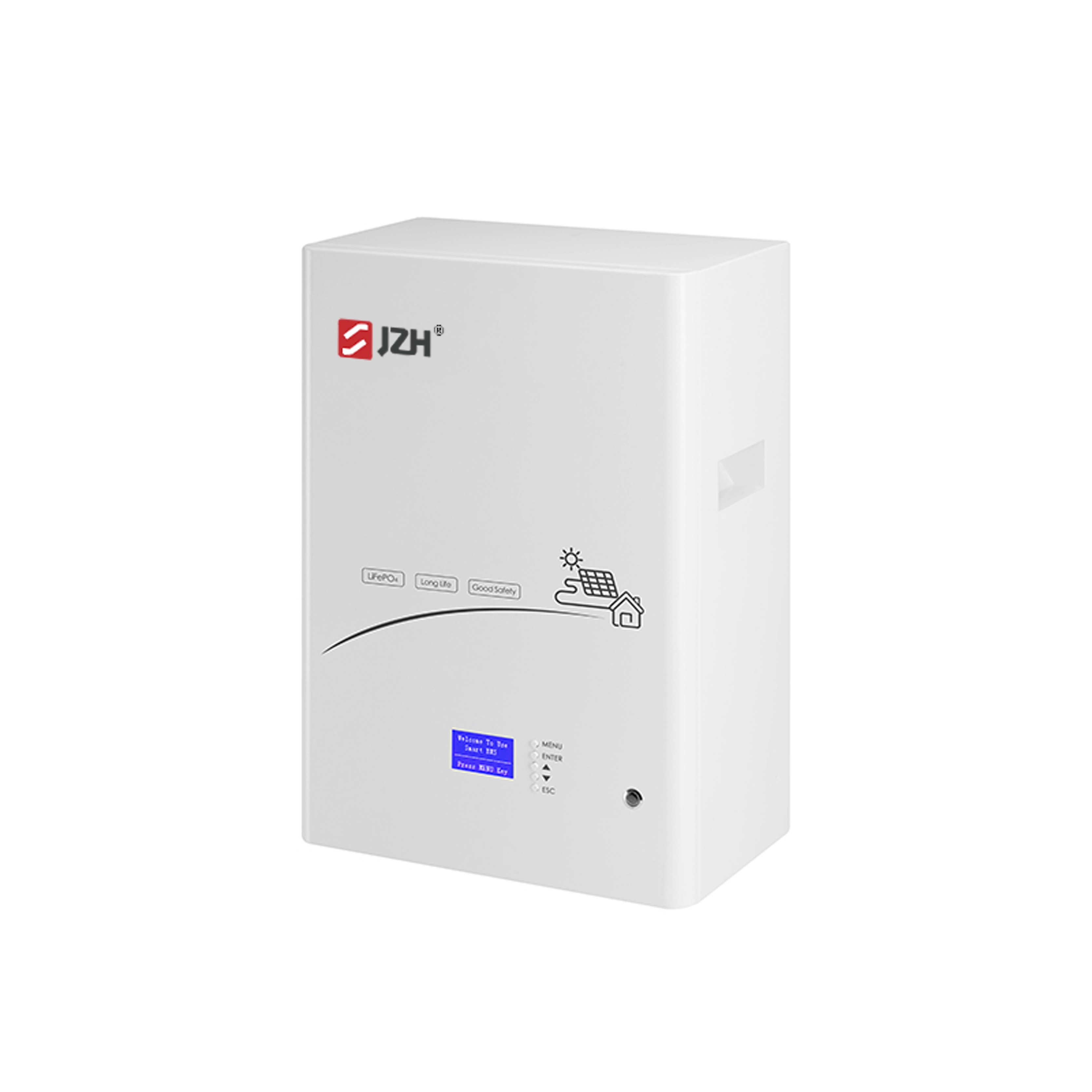

The Battery Pack is Equipped with LCD Display Screen for Visualization of Operating Setting. JZH Energy Storage Lithium Battery Pack is Compatible with Most Brands Inverter with Good Communication Automatically.
JZH Energy Storage Lithium Battery is Perfect Power Storage Solution for Household, Industrial, Commercial, Agricultural and Other Electrical Equipment.
JZH Energy Storage Lithium Battery Certified with UN38.3, MSDS, CE, FCC, Rohs, NOM, ETL, UL , TUV...
1)More Than 6000 Life Circles.
2)Communication Optional : USB / RS232 / Rs485 / Wifi / 4G / Bluetooth.
3)Intelligent BMS : Battery Management Programme.
4)Full Protection : Overload / Short Circuit / Deep Discharge Protection / Over Temperature...
ADVANTAGES & BENEFITS
- 1. Standard 4U cabinet size, easy to install
2. RS485/RS232 and CAN communication functions, can communicate with the host computer and inverter
3. With terminals for parallel use, it is convenient for grouping
4. Designed With the switch, can control lithium battery, with power display, with DC protection circuit breaker
5. 15 strings can be used as a 48V system, or 16 strings can be used as a 51.2V system
6. Optional Bluetooth and WIFI function, display screen
7. In a large photovoltaic energy storage system, due to the large system power and high system voltage. Therefore, after using multiple rack-mounted strings, it is very convenient to apply to the required large power pressure and bulk energy storage systems
8. The default charge and discharge current is 0.5C, 1C can be customized (other parameters need to be customized)
Solar Energy Storage Lithium Battery LiFePO4
1)More Than 6000 Life Circles.
2)Customized Voltage and Capacity.
3)Communication Optional : USB / RS232 / RS485 / Wifi / 4G / Bluetooth.
Intelligent BMS Battery Management Programme to Keep the LiFePO4 Energy Storage Batteries Run in safe and high performance Aromatically and continuously .
1)Low Voltage Protection.
2)Overload Protection.
3)Over Temperature Protection.
4)Balanced Protection.
5)Over Discharge Protection.
6)Short Circuit Protection.
7)Deep Discharge Protection.
Specifications
|
Technical Parameters
|
||||||
|
Model |
JZHC4850 |
JZHC48100 |
JZHC48200 |
|||
|
Specification |
48V50Ah |
51.2V50Ah |
48V100Ah |
51.2V100Ah |
48V200Ah |
51.2V200Ah |
|
Combination |
15S1P |
16S1P |
15S1P |
16S1P |
15S1P |
16S1P |
|
Capacity |
2.4KWh |
2.56KWh |
4.8KWh |
5.12KWh |
9.6KWh |
10.24KWh |
|
Standard discharge current |
50A |
50A |
50A |
50A |
50A |
50A |
|
Max.discharge current |
100A |
100A |
100A |
100A |
100A |
100A |
|
Working voltage range |
40.5-54VDC |
43.2-57.6VDC |
40.5-54VDC |
43.2-57.6VDC |
40.5-54VDC |
43.2-57.6VDC |
|
Standard Voltage |
48VDC |
51.2VDC |
48VDC |
51.2VDC |
48VDC |
51.2VDC |
|
Max.charging current |
50A |
50A |
50A |
50A |
100A |
100A |
|
Max.charging voltage |
54V |
57.6V |
54V |
57.6V |
54V |
57.6V |
|
Cycle |
3000 ~ 6000 cycles @ DOD 80% / 25℃ / 0.5C |
|||||
|
Working humidity |
65 ± 20% RH |
|||||
|
Operating temperature |
-10~+50℃ |
|||||
|
Working altitude |
≤ 2500m |
|||||
|
Cooling method |
Natural cooling |
|||||
|
Installation |
Cabinet / Rack Mount |
|||||
|
Protection level |
IP20 |
|||||
|
Maxof parallel |
15PCS |
|||||
|
Communication |
Default: RS485 / RS232 / CAN Optional : WiFi / 4G / Bluetooth |
|||||
|
Certified |
CE ROHS FCC UN38.3 MSDS |
|||||
